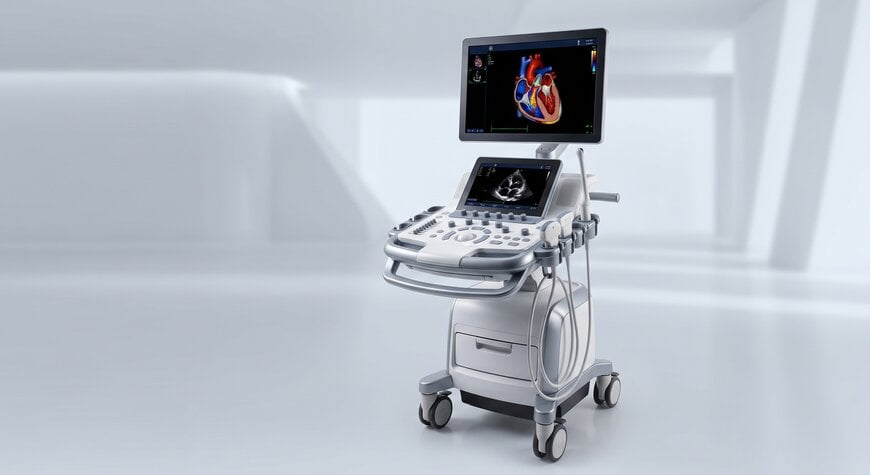

Cardiovascular Ultrasound Portfolio Expanded for Clinical Cardiology Workflows
GE HealthCare introduced three cardiovascular ultrasound systems engineered to standardize beamforming architecture and automated diagnostic quantification across varied clinical healthcare settings.
www.gehealthcare.com
GE HealthCare has expanded its cardiovascular ultrasound portfolio to address specific throughput, diagnostic complexity, and operational mobility requirements in cardiology departments, outpatient practices, and interventional suites. The systems were presented at the European Society of Cardiology (ESC) Congress 2026, held August 28–31 in Munich, Germany.
Architectural Standardization Across Cardiovascular Environments
Global cardiovascular disease prevalence has doubled since 1991, increasing the demand for scalable diagnostic workflows spanning routine transthoracic exams, complex structural heart assessments, and catheter-based guidance. To maintain operational continuity across distinct departmental tiers, the product line utilizes a shared software beamforming engine, designated as the cSound platform.
This software-defined imaging architecture processes acoustic data through algorithmic pixel-level beam reconstruction rather than relying strictly on hardware-limited analog delay lines. This approach standardizes spatial resolution, contrast definition, and deep tissue visualization across various clinical tiers:
- High-Volume Laboratories and Interventions: Configured with 4D volumetric, multi-plane, and 2D acquisition modes supporting transthoracic echocardiography (TTE), transesophageal echocardiography (TEE), and intracardiac echocardiography (ICE).
- Mid-Sized Hospitals and Practices: Configured for primary cardiac imaging (2D TTE, multi-plane TEE, 2D ICE) alongside peripheral vascular, abdominal, and general soft-tissue assessment modules.
- Core Routine Care: Equipped with the 4Sc-RS sector transducer for fundamental cardiac evaluation, coupled with multi-specialty diagnostic compatibility.
Automated Quantification and Software-Driven Workflow Integration
The systems integrate artificial intelligence algorithms and automated calculation packages to minimize operator dependency and reduce manual measurement cycles during routine echocardiograms:
The systems integrate artificial intelligence algorithms and automated calculation packages to minimize operator dependency and reduce manual measurement cycles during routine echocardiograms:
- Automated left ventricular ejection fraction calculation (Easy AutoEF)
- Automated global longitudinal strain assessment (Easy AFI LV)
- Automated 2D anatomical parameter acquisition (AI Auto Measure 2D)
- Automated spectral Doppler trace extraction (AI Cardiac Auto Doppler)
To enable offline review and workflow continuity, these analysis algorithms are mirrored within the EchoPAC Software Only v211 workstation, providing functional parity between direct scanner consoles and remote reading stations. Physical configurations incorporate battery-supported transport capability and low-power standby states to support point-of-care mobility across inpatient units.
The ultrasound systems function alongside the vendor's ECG networks, computed tomography platforms, handheld point-of-care devices, and interventional hemodynamic recording infrastructure to form a unified cardiology pathway.
Additional Context
This section details technical specifications and competitive bench marking not included in the original product announcement.
Cardiovascular ultrasound instrumentation is benchmarked primarily on beamforming computational bandwidth, volumetric frame rates (volumes per second), automated strain analysis reliability, and transcatheter probe miniaturization.
The software-based beamforming model directly competes with architectures such as Philips' nSIGHT Imaging (utilized on the EPIQ CVx platform) and Siemens Healthineers' multi-beam acoustic engines on the ACUSON series. While hardware-centric systems process predefined analog scan lines, software-reconstructed beamforming preserves channel data in memory to dynamically adjust focus at every pixel, enhancing near-field and far-field lateral resolution. Automated speckle-tracking and Doppler extraction capabilities also benchmark directly against standardized vendor-neutral platforms, where reproducibility within a variability threshold of less than 5% to 10% in ejection fraction and global longitudinal strain is the established clinical metric.
Edited by Evgeny Churilov, Induportals Media - Adapted by AI.
