Integrated LED Cable Modules Advance Single-Use Endoscopy Systems

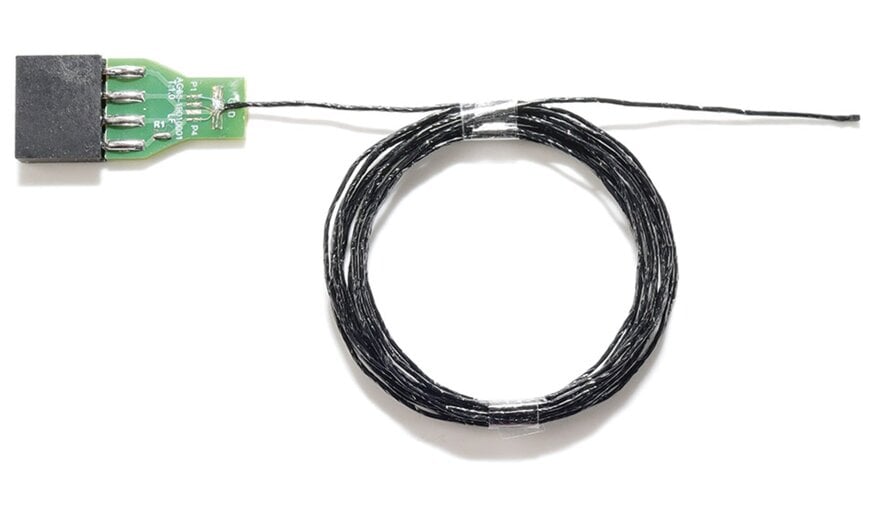

OMNIVISION is releasing a new series of ultra-thin, medical-grade imaging solutions, specifically the OVMed^® OCHTA Cable Module, designed to connect image sensors at the distal tip of single-use endoscopes. This integrated approach combines wafer-level optics, mini-LED illumination, and cabling to support high-resolution diagnostics in fields such as gastroenterology, pulmonology, ophthalmology, and urology.

Shift Toward Chip-on-Tip Endoscopy
The medical industry is transitioning toward smaller, higher-resolution CMOS chip-on-tip endoscopes that utilize LED illumination and thin wiring to access deeper anatomical regions. By embedding the image sensor directly at the distal tip rather than relying on external fiber optics, manufacturers can achieve better image clarity in highly constrained spaces. The newly released modules support multiple miniature camera sensors alongside the OCHTA, including the OCHFA, OCHSA, and OCH2B configurations. These standardized combinations are engineered for a diverse array of medical instruments, ranging from bronchoscopes, laparoscopes, and colonoscopes to specialized tools like ophthalmoscopes and arthroscopes.

Signal Integrity and Regulatory Compliance
Transmitting captured images from the distal tip down the endoscope shaft to the proximal end requires robust signal integrity with minimal visual artifacts. The cable modules address this requirement by integrating electromagnetic compatibility and electromagnetic interference (EMC/EMI) shielding. This shielding mechanism adheres directly to IEC 60601 standards, ensuring the cables can withstand the high-energy discharges typical during multimodal medical imaging procedures without causing or suffering interference with surrounding medical equipment.

Furthermore, these assemblies are manufactured in ISO 13485-certified facilities. The modules undergo comprehensive testing for operation under stress, biocompatibility, sterilization resilience, and waterproofing. This pre-qualification process streamlines the path to regulatory clearances, such as FDA certification, for endoscope manufacturers.




Supply Chain and Customization Capabilities
To adapt to varying procedural requirements within the medical imaging ecosystem, these modules can be modified based on camera dimensions, cable type, end connectors, LED illumination strength, and tip structure geometry. Medical endoscope manufacturers require flexible customization to design instruments for highly specific procedures. Relying on pre-tested, turn-key modules reduces design and testing phases, thereby simplifying the overall digital supply chain. Leveraging these standardized, high-volume components enables developers to achieve a more cost-effective manufacturing process and accelerate time to market.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

The single-use endoscopy sector relies heavily on highly integrated micro-camera modules to maintain low per-unit costs while meeting clinical imaging standards. Competitors in this space, such as ams OSRAM, offer similar miniature image sensors targeting the disposable medical device market. Benchmarking these technologies typically centers on module footprint—often measuring sub-1mm by 1mm for distal tips—alongside resolution and power consumption. Integrated turn-key modules that package the sensor, wafer-level lenses, pre-assembled LED lighting, and shielded cabling into a single unit provide a measurable advantage in manufacturing throughput compared to sourcing and assembling discrete optical and electrical components separately.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
