Temperature-Controlled Impulse Sealing for Regulated Packaging

Impulse heat sealing is widely used where package integrity directly affects product safety, sterility, or long-term performance. In medical device packaging, film conversion, and engineered component assembly, seal consistency must be repeatable and validatable under regulatory frameworks such as ISO 11607. PackworldUSA and TOSS Machine Components, Inc. have expanded their temperature-controlled impulse sealing technologies to address these requirements across laboratory and industrial production environments.

Moving from fixed power to closed-loop control
Traditional impulse sealing systems relied on fixed energy input, assuming stable material and environmental conditions. In practice, variations in film thickness, ambient temperature, and line speed can shift the sealing window, increasing the risk of under- or over-sealing.

TOSS Technology’s Optimum Sealing System replaces fixed power delivery with Variable Resistance Control (VRC). The system uses the electrical resistance of the heating element as a real-time temperature feedback signal. Because resistance changes predictably with temperature, the controller can regulate heat output in a closed-loop configuration. This enables controlled ramp-up, stabilization, and cooldown phases, producing seals that can be monitored and documented for compliance within a digital supply chain.

Controller architecture and network integration

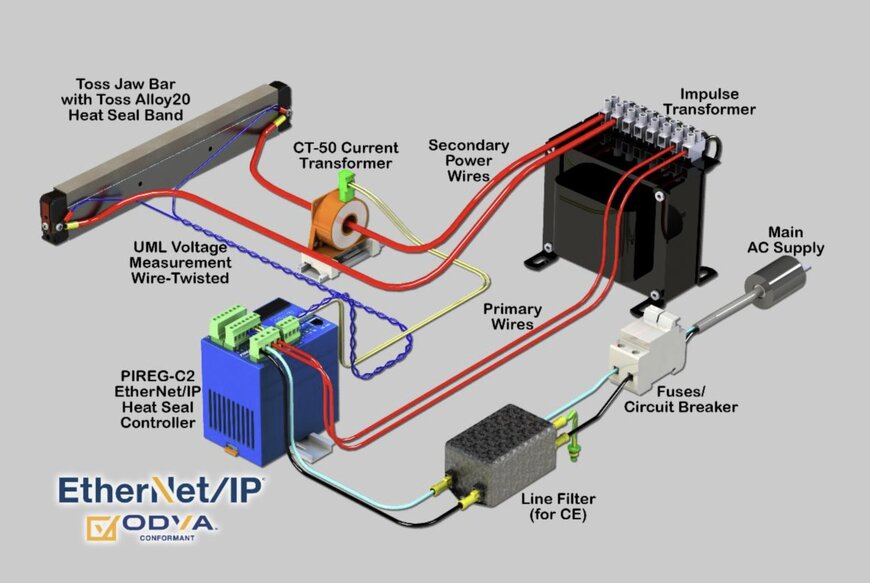

Key hardware developments include the Pronet Controller C2-210 and the PIREG^®-545. The Pronet C2-210 supports programmable temperature profiles and integration into industrial networks, allowing sealing parameters to be logged, adjusted, and synchronized with higher-level automation systems.

The PIREG^®-545 is designed for fast thermal response and overshoot prevention, critical when working with polymeric films that have narrow processing windows. The PIREG series is available as DIN rail-mounted units for control cabinets or panel-mounted devices with integrated displays. Communication options include analog interfaces, Ethernet, PROFINET, and EtherCAT, supporting integration into distributed control architectures.

Multi-point calibration and enhanced system security features further support traceability and parameter control in regulated environments.




Equipment platforms for sterile and industrial sealing

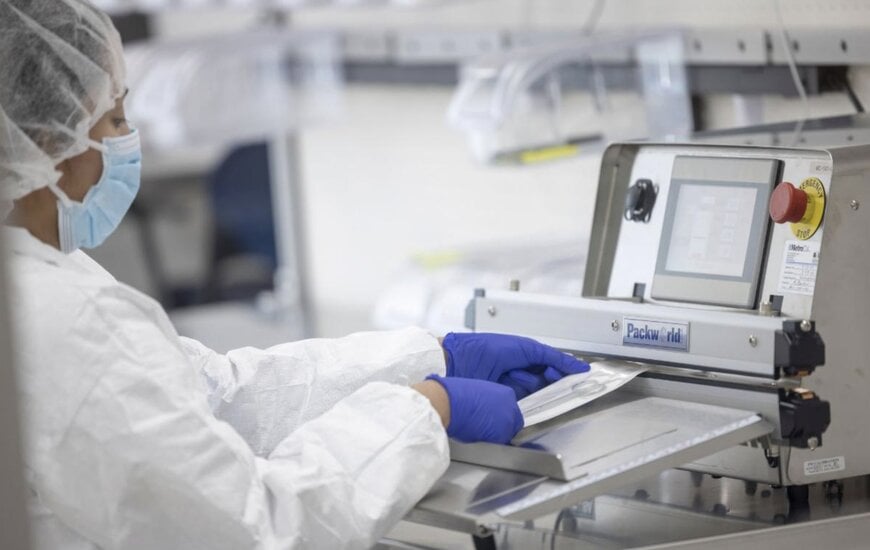

PackworldUSA designs and manufactures impulse sealing equipment ranging from benchtop systems to floor-standing machines. These platforms are used for sterile barrier pouches, medical bags, and other packaging formats in cleanrooms, life science laboratories, and R&D facilities.

Beyond medical packaging, applications include bonding pleated filters, splicing film webs in conversion processes, sealing inflatable products, and assembling battery packs. Engineered heat seal bands, customizable seal jaws and platens, and touchscreen interfaces allow operators to adapt tooling and process parameters to different materials and geometries while maintaining repeatability.

Seal integrity as a process variable
The combination of resistance-based temperature feedback, programmable controllers, and industrial communication protocols shifts impulse sealing from a manual setup task to a monitored process step. In sectors where seal validation is mandatory, closed-loop control provides measurable temperature data that can be recorded alongside batch or production data.

By aligning sealing hardware, control electronics, and software interfaces, PackworldUSA and TOSS Machine Components position impulse heat sealing as an integrated part of automated manufacturing and compliance-driven packaging workflows.
