Bender Medical IT Systems Ensure Reliable Power in Critical Care

Medical IT system for operating theatres, intensive care units and other medical locations
In operating theatres, intensive care units, emergency rooms and other particularly sensitive areas of a hospital where patients are treated, an unearthed power supply (medical IT system) is required in accordance with IEC 60364-7-710.

This is the only way to ensure that the power supply does not fail in the event of a first electrical fault and that important patient treatments are not unintentionally interrupted.

The prerequisite for an unearthed power supply is galvanic separation from the earthed power supply.

In addition, the feed into a medical IT system must always consist of two independent lines. A switching (changeover) device must therefore be provided which can switch between the general power supply and the emergency or safety power supply within a prescribed time.

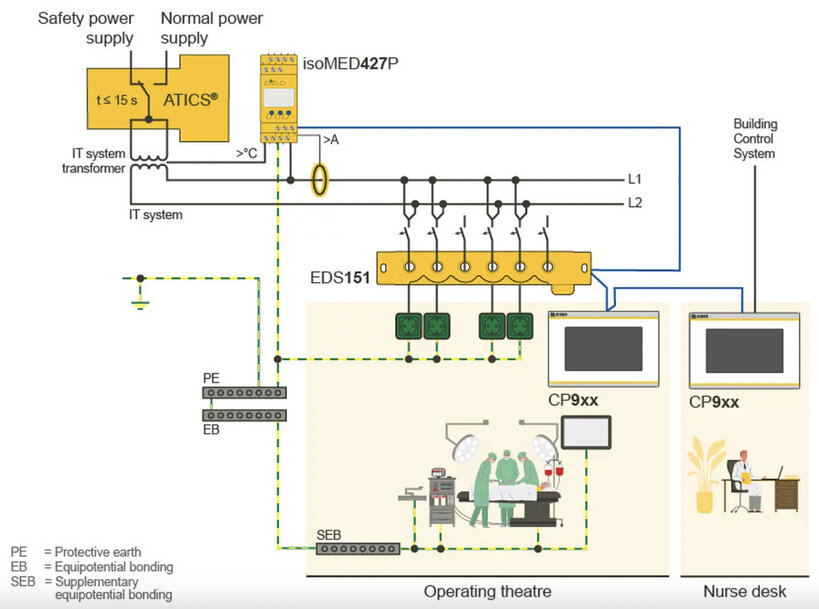

Components for a medical IT system in accordance with IEC 60364-7-710
The following components are required for a medical IT system in accordance with IEC 60364-7-710:

In addition, a protective potential equalization must be set up in every medically used area of room groups 1 and 2 and connected to a protective potential equalization rail in order to equalize potential differences.




Our solutions for medical IT systems
Bender offers all the necessary individual components for an unearthed power supply in medical locations.

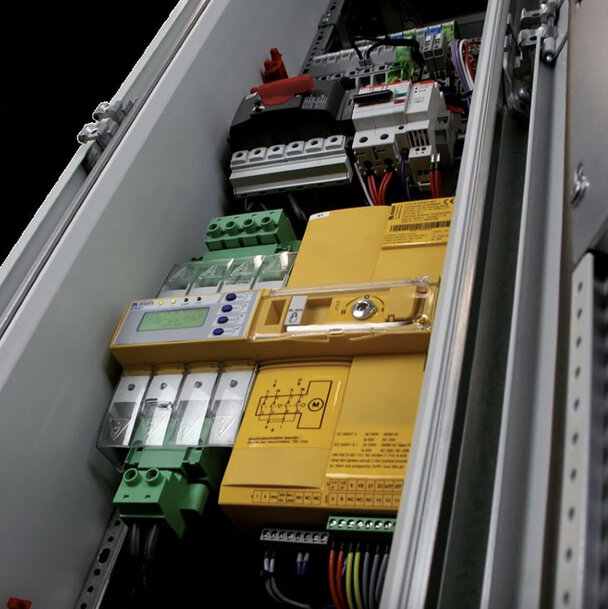

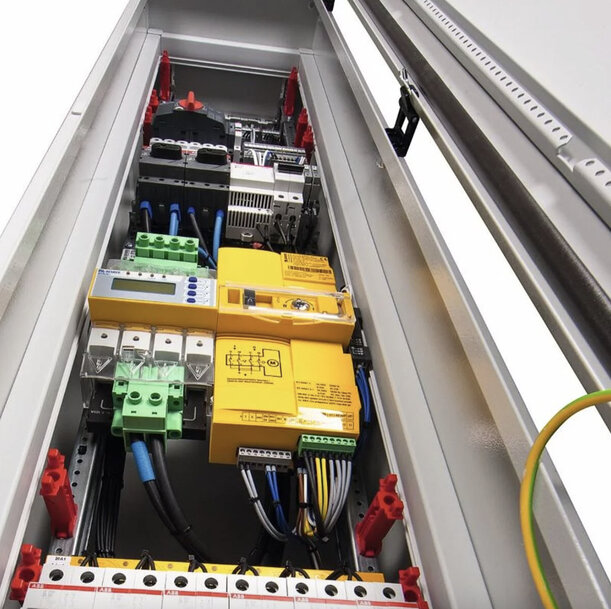

Alternatively, complete isolated power panels can also be ordered. These are available as standard or customised solutions for operating theatres, intensive care units and other areas used for medical purposes. The complete solutions are ideal wherever installation costs need to be kept to a minimum.
