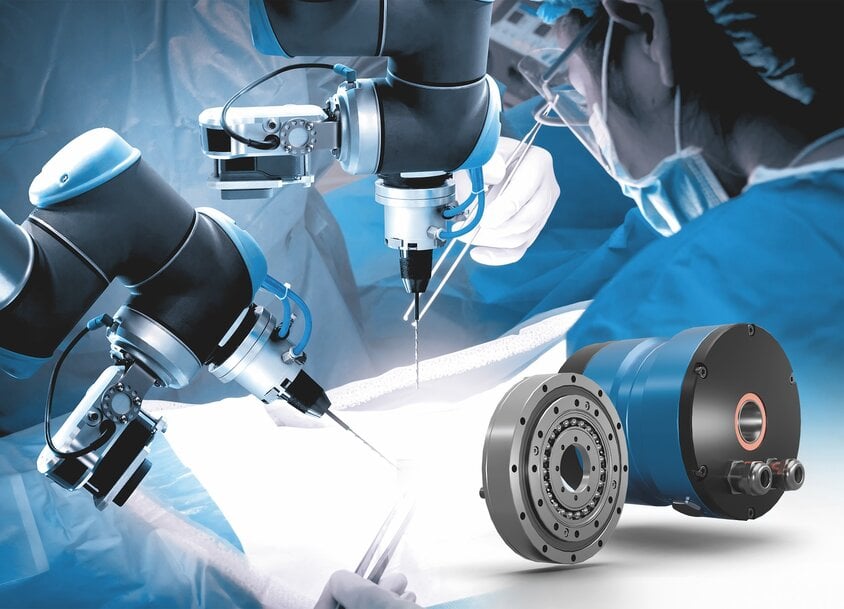

Nabtesco develops zero-backlash gears for surgical robots
High-precision strain wave gears and compact actuators enable safe, repeatable motion in space-constrained medical robotics applications.
www.nabtesco.com
Medical robotics, precision engineering, and surgical automation require motion systems capable of delivering exact, repeatable movements under strict safety constraints. In this context, Nabtesco Corporation has developed strain wave gears and drive solutions specifically designed for integration into robot-assisted surgical systems.
These components are engineered to meet the stringent requirements of operating room environments, where motion accuracy, compact design, and system reliability are critical for both clinical performance and patient safety.
Zero-backlash transmission for precise surgical motion
Strain wave gears used in surgical robots must ensure that commanded movements are transmitted without delay or positional deviation. Nabtesco’s designs feature zero backlash, enabling highly accurate and repeatable positioning of surgical instruments.
Key performance characteristics include:
- Zero backlash: Eliminates positional play for precise motion control
- High repeatability: Ensures consistent execution of programmed movements
- High torque capacity: Supports stable operation across multiple robotic axes
- Controlled backdriving torque: Enables responsive and sensitive positioning
These features are essential in surgical procedures where even minor deviations can affect outcomes.
Compact design for multi-axis robotic systems
Surgical robots operate within constrained spaces and require compact, lightweight components. Strain wave gears provide a high torque-to-size ratio, allowing efficient integration into multi-axis robotic arms.
Additional design features support system integration:
Compact design for multi-axis robotic systems
Surgical robots operate within constrained spaces and require compact, lightweight components. Strain wave gears provide a high torque-to-size ratio, allowing efficient integration into multi-axis robotic arms.
Additional design features support system integration:
- Compact dimensions and low weight: Facilitate space-saving robot architectures
- Hollow shaft options: Allow routing of cables, fluids, and power lines through the gear
- Enclosed construction: Supports hygienic operation and simplifies cleaning
Such characteristics are particularly relevant for minimally invasive surgical systems.
Short gear variants with increased performance
Nabtesco has developed short-build strain wave gears optimized for compact applications. Compared to conventional designs of similar size, these variants offer:
Short gear variants with increased performance
Nabtesco has developed short-build strain wave gears optimized for compact applications. Compared to conventional designs of similar size, these variants offer:
- 120% power density: Increased torque output within the same footprint
- 140% service life: Extended operational durability under continuous use
These improvements provide additional flexibility for designing smaller, more capable robotic systems.
Integrated actuators for simplified system design
For applications requiring higher integration, Nabtesco offers compact actuators that combine multiple components into a single unit:
Integrated actuators for simplified system design
For applications requiring higher integration, Nabtesco offers compact actuators that combine multiple components into a single unit:
- Gear, motor, and encoder integrated into one assembly
- Optional brake for additional control and safety
- Reduced interfacing complexity during system integration
This approach streamlines the development of robotic systems and reduces assembly effort.
Safety features for critical medical applications
Safety is a primary requirement in surgical robotics. The strain wave gears are designed to withstand torque loads of up to 500% of rated capacity, with a safety factor against failure of up to 1,500%.
Additional safety is provided through digital gearbox solutions that monitor torque variations in real time, enabling:
Safety features for critical medical applications
Safety is a primary requirement in surgical robotics. The strain wave gears are designed to withstand torque loads of up to 500% of rated capacity, with a safety factor against failure of up to 1,500%.
Additional safety is provided through digital gearbox solutions that monitor torque variations in real time, enabling:
- Early collision detection
- Rapid system response and motion stop
- Enhanced protection for patients and operators
These features support compliance with stringent safety standards in medical environments.
Manufacturing and quality assurance
All strain wave gears are developed and manufactured in Germany, with production carried out at a dedicated facility in Limburg an der Lahn. Each unit undergoes 100% final inspection prior to delivery, ensuring consistent quality and reliability.
By combining precision gear technology with integrated safety and compact design, Nabtesco’s solutions address the key technical challenges of surgical robotics, enabling accurate, repeatable, and safe operation in demanding clinical environments.
Edited by Natania Lyngdoh, Induportals Editor — Adapted by AI.
